Area & Main Alarm Panel
Brand - Silbermann, LLC

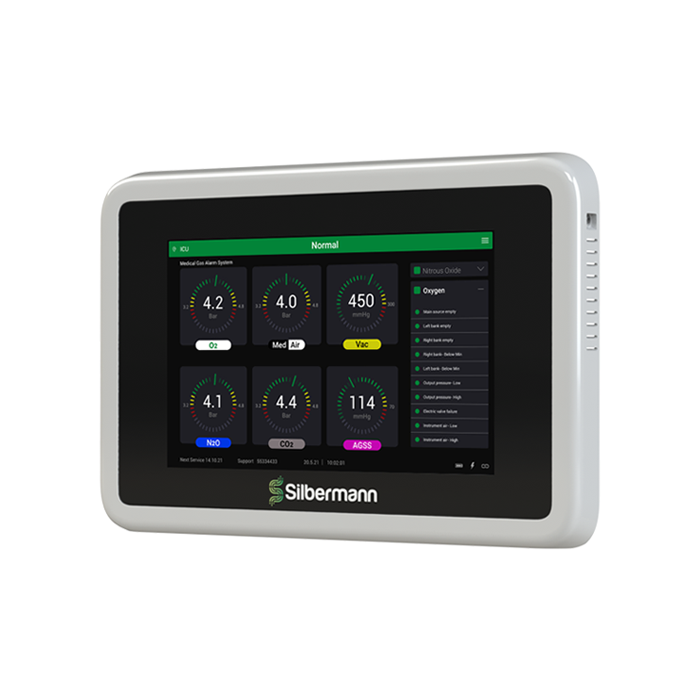

The Silbermann Advanced Area & Main Alarm Panel with an innovative 12” touchscreen monitor displays the local & remote (Manifold Systems) information in a friendly, clear view.
This Advanced Xanadu Model uses state-of-the-art Hi security technology to protect the information displayed and transmitted, from malicious attacks.
The Xanadu Area & Main Alarm Panel meets the latest additional requirements of NFPA99, EN ISO 7396-1, and HTM02-01.
LCD 12” touch screen display.
Display of 1-6 local gases/ gauges alarms together with 1-18 remote digital alarms on the screen.
Aesthetics & smooth design without buttons for infection control.
Secured Ethernet-based network communication between all units.
Unique secured authentication of each unit to avoid fake/masking of alarms.
Remote viewing through a mobile device or remote computer.
Gas-specific sensor with DISS nut and nipple to avoid mechanical cross-connection.
For Future Use - disables a gas alarm until the gas pipeline infrastructure is complete.
Multi-linguistic- Supports English, Spanish, Russian, Arabic & Chinese.
Commissioning for local gas/ gauges - Enables the identification of gas leaks before the commission.
Gauges color trend arc showing the gas pressure status.
Expandable digital menu-Menu expands automatically in case of an alarm within it to show that alarm.
Adjustable digital alarm color (Red/ Yellow).
Enable/ Disable the digital alarm.
Adjustable digital alarm type (NO/ NC).
Automatic adjustment of screen brightness (day & night mode).
Self-diagnostics with error display for problem identification.
Event logging, recording all alarms and panel activities.
Periodical maintenance alert.
Customizable text for digital alarms & panel location.
Remote monitoring of dry contacts of gas pressure alarm conditions including:
- High & Low alert,
- Below Min alert,
- Any Alarm.Hinged panel opening for easy installation and maintenance.
On-site adjustment of HI and LOW set-points for each Gas & gas unit.
Highly accurate solid-state pressure piezo-resistive transducer.
Built-in relay for remote annunciator applications.
Gas-specific digital sensors mounted locally or remotely, up to 1500m, utilizing 22 gauge twisted pair.
Wifi communication is available.
Remote monitoring (Via TCP/IP Modbus) through the building management system available.
The digital 12” touchscreen area & main alarm system shall be of Silbermann’s type.
The Alarm Panel shall be capable of accommodating up to six services & 18 digital alerts. The sensors shall be capable of local or remote mounting.
Customizable language and gas badges (ISO/NFPA colors) during the setup process.
Each transducer shall be electronically gas-specific to avoid wiring cross-connection.
Each gas service shall have a unique display indicating the online measured pressure/vacuum.
Each gas service shall have a trend bar for showing the pressure trend. (Green - Normal, Yellow - Caution, Red - Hi or Low). In the case of an alarm, the red light will flash and the alarm will sound. Canceling the alarm by the mute button will stop the audible alarm but the red light will continue to flash until the failure is fixed.
TEST & SILENCE touch buttons shall be easily accessed for operating and testing the unit.
Adjustable repeat alarm (15 or OFF. Also 15 seconds for convenient maintenance).
Selected gas pressure units: PSI, kPa, or BAR.
Selected vacuum pressure units: kPa, mmHg cmHg.
Alarm buzzer level adjustable: 70,80,90 dB
Adjustable Hi and Low set points (+/-20% of normal pressure).
Input power shall be 100VAC to 230VAC, 50÷60Hz
Optional backup battery
