ENV 737-6 Type
Brand - Silbermann, LLC

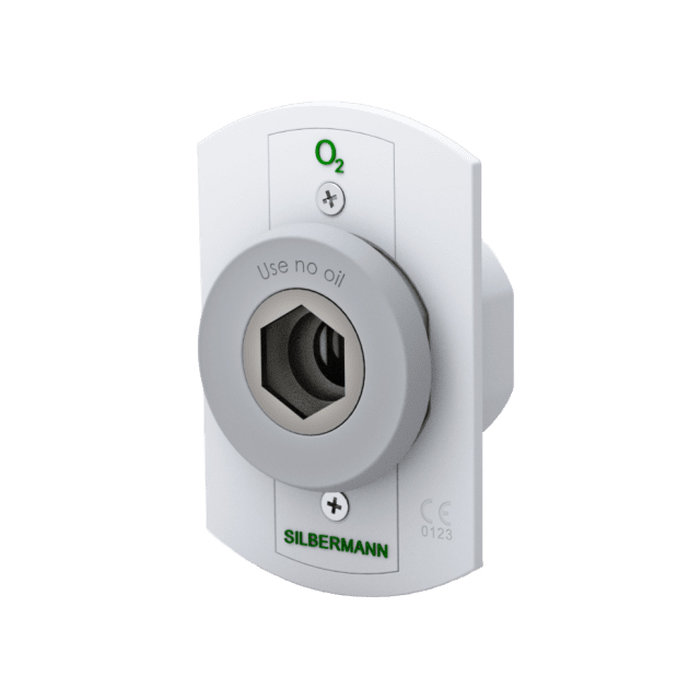

Silbermann manufactures the ENV 737-6 Medical Type Gas Outlet (Terminal Unit) by ISO 9170-1 and ENV 737-6 standards.
The product complies with the requirements of NFPA 99 and EN 7396-1 and is CE marked by the notified body TÜV SÜD.
It includes gas-specific indexing to avoid the risk of incorrect connections.
Silbermann design our gas outlets for durability and to provide continuous, reliable medical gas flow to both patients and medical equipment.
Each outlet is thoroughly tested for flow and leaks and is cleaned for oxygen use before shipping.
Silbermann's ENV 737-6 type gas outlets are developed in collaboration with industrial designers to create a visually appealing and comfortable environment for patients and medical staff.
Compatible with various gas types, including:
● Oxygen
● Medical Air
● CO₂
● Nitrous Oxide
● Vacuum
● Nitrogen.
Accepts ENV 737-6 gas-specific adapters.
Silbermann’s ENV medical gas outlet is manufactured for ENV-standard medical gas connections and delivered ready for installation after leak verification, degreasing, and cleaning for medical gas service.
Each outlet is gas-indexed to reduce the risk of accidental gas service mix-ups.

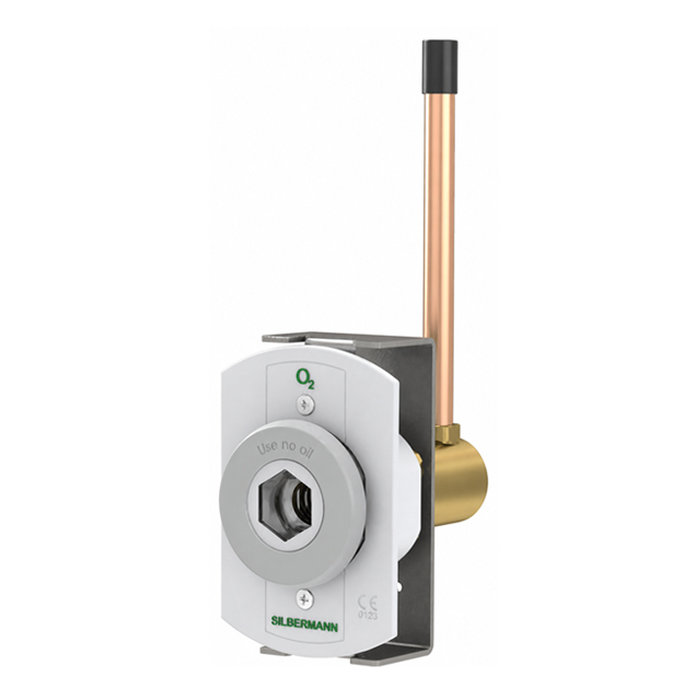

360° swivel inlet pipe for ease of installation.
Double position allowing parking of male adapter in the outlet.
Requires minimal maintenance thanks to the durable VITON seals integrated into the front assembly (latch valve).
Medical Gas System Standards: NFPA99 & EN ISO 7396-1 requirements.
Applicable Standards: ISO 9170-1, ENV 737-6.
Silbermann’s Quality Management System: CE marked by the notified body TÜV-SÜD.
The medical gas outlet shall be SILBERMANN ENV type manufactured according to ISO 9170-1 ENV 737-6.
The outlet shall be gas-specific by indexing each front service panel to a gas-specific pin-indexed rough-in module.
The outlet of positive and negative pressure shall consist of a primary and secondary check valve to allow testing and online maintenance.

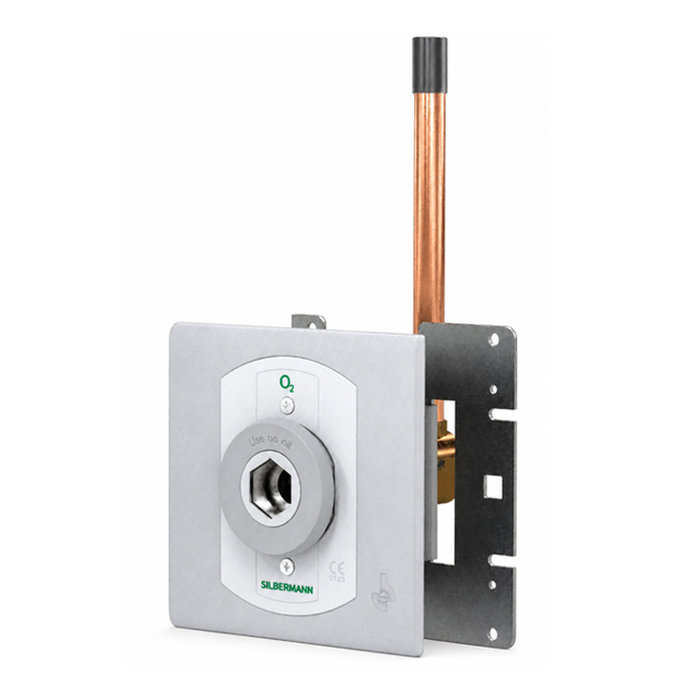

Outlet shall be manufactured with 175 mm long, type K, 12.7 mm (1/2”) OD copper pipe. The rough-in pipe shall be silver-brazed on the outlet body.
With the rough-in mounted, the outlet shall be depth adjustable to compensate for various wall thicknesses.
The quick-connect outlet shall comply with ISO 9170-1 standard type and accept only corresponding ENV 737-6 Gas Specific Adapter.
Pressure drop of less than 20 Kpa through the outlet at 120 LPM and 350 (Kpa 3.5 Bar) inlet pressure.
When fully open, the outlet allows a low of up to 600LPM and pressure of 400 KPa (4 Bars).
